Specifications

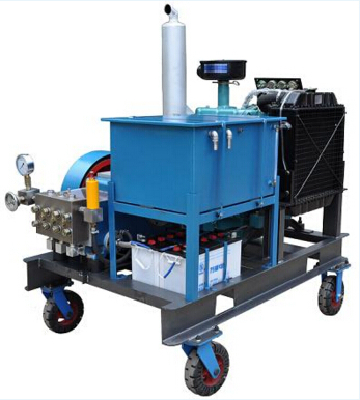

LF-16/50 diesel engine drive high pressure washer,
1.Max.pressure:500 bar
2.Water flow:16L/min
3.power:15KW



MAIN FEATURES of industrial high pressure washer model :

1. Independent alloy steel high pressure cylinder; straight-line hydraulic end;

2. Compulsory lubrication system;

3. Plunger core automatic regulate device;

4. Super-hard alloy or ceramic plunger;

5. All-in-one transmission case;

6. Equipped with protection unit for phase failure and over charge;

7. Intake pressure and lubricant pressure warning device.



Applications of High pressure washer:



Like :1.using in cleaning the Aluminium  plant  Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers.  With preesure 350bar --2800bar



 2.Using to  wash Aviation  Expansion joints, grease, rubber and hydraulic fluids on runways.  With pressure 690bar  - -1400bar



3. Using to wash the Breweries  Yeast, sediments and fermentation residues on vats, pipe and facilities.  With pressure 200bar --2800bar



4. Using to Cement plant  Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and handling equipment. With pressure 200bar --690bar



5. using to  wash Chemical processing  Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,reactors and storage tanks.  With pressure 350bar --2800bar



6. using to Construction  Concrete demolishing, exposing steel-bars, cutting concrete and steel bars.  With pressure 350bar --2800bar



 7.using to Distilleries  Cleaning of heat exchanger, boiler tubes, vats and pipe lines.  With pressure 600bar- -2800bar



8.using in  washing the Food processing  Grease, fats, oil and dough from ovens, mixers, conveyors and facilities.   With pressure 200bar-- 1000bar



9.using to  clean the Foundries  Removal of deposits, metal oxidation, ceramic & sand core materials for casting.  With pressure 1000bar --2800bar



10.using in  Highway  Maintenance  Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of expansion joints, paint strips and concrete demolishing on road bridges.   With pressure 350bar --2800bar



11.using to clean the  Marine & Offshore  Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust.    With the pressure 500bar --2800bar



12.using in  Meat packing  Cleaning of grease, fats, blood on conveyors, pipes and drains.   With pressure 200bar-- 690bar



13.using in  Metal processing  Mill scale, rust and weld slag from new vessels, tanks and pipe.  With pressure  1400bar --2800bar



14. using  in Military  Cut & explode mines, decontamination of shells and cutting cordite. Cleaning of machinery & vehicles  with the pressure 200bar-- 2800bar



15.using in  Mining  Pre-maintenance cleaning of dump trucks, drag-lines, underground haulage lines and shafts.Unclog plant machinery due to coal, rock dust and oil.  With the pressure 300bar 2800bar





MODEL	PRESSURE	WATER FLOW	POWER	Plunger Diameter	STROKE
	Bar	L/min	KW	mm	mm
LF-35/24	240	35	15	26	46
LF-30/28	280	30	15	24	46
LF-25/32	320	25	15	22	46
LF-20/40	400	20	15	20	46
LF-16/50	500	16	15	18	46
LF-13/63	630	13	15	16	46
LF-35/32	320	35	22	26	46
LF-20/50	500	20	22	20	46
LF-13/80	800	13	22	16	46
LF-13/100	1000	13	30	16	46
